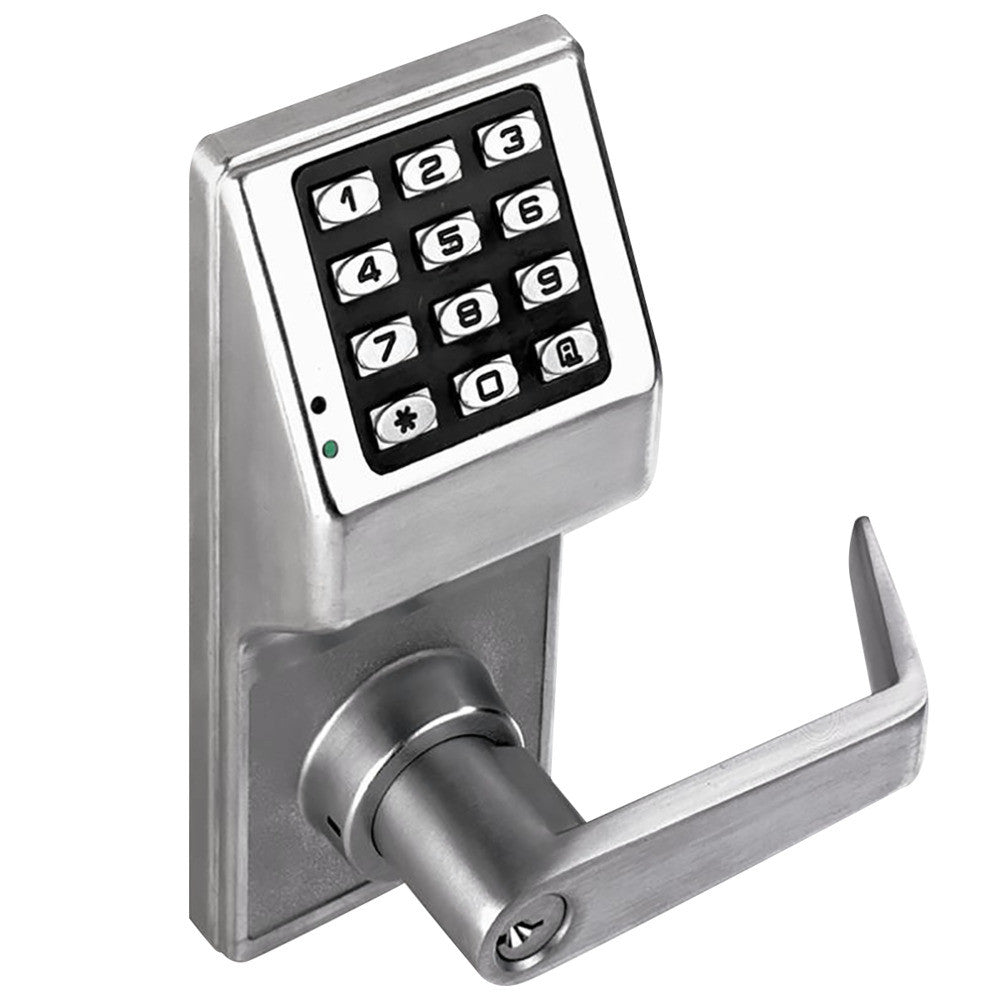

Alarm Lock DL2700/26D Trilogy T2 Standalone Digital Keypad Lever Lock, Satin Chrome

The Alarm Lock Trilogy T2 DL2700/26D is a standalone, battery-operated electronic keypad lever lock for commercial doors, in US26D satin chrome with standard key override.

Features

• BHMA Grade 1 durability: rugged clutch mechanism and vandal-proof all-metal keypad
• Multi-level user codes: Master, 10 managers, 90 users, 3 service codes; up to 100 user codes (3-6 digits)
• 100% keypad programmable; individual, group or total user lockout codes
• Passage mode by manager and/or master; allowable entry time 5 to 20 seconds; 4 keypad tones, keypad may be silenced
• Standalone, battery operated: 5 AA alkaline batteries (supplied) rated at 200,000 cycles; audible low battery alert
• Non-handed; 2-wire remote override; visual and audible entry indicators
• Installs in about an hour; retrofits cylindrical knobsets and digital locks using slightly modified ANSI 161 Series prep

Specifications

• Operation: clutch mechanism permits turning lever without retracting latch; outside lever free-turning when locked; code, key bypass or remote bypass retracts latch; inside lever always instant egress
• Door thickness: 1 5/8" to 1 7/8"; backset 2 3/4" standard (2 3/8" available)
• Key override cylinder: solid brass 6-pin tumbler pinned 5, SC1 keyway; HW580 and HW620 tailpieces included
• Latchbolt: UL listed, 3-hour fire rated, 1/2" throw, solid brass, deadlocking, reversible; adjustable front for flat or beveled doors
• Strikes: 1 1/8" x 2 3/4" T strike and 1 1/4" x 4 7/8" ASA strike included, with screws for wood or metal jambs
• Finish: US26D satin chrome
• Compliances: Grade 1 heavy-duty cylindrical lockset, UL listed, FCC certified, ADA-compliant leverset

Source: Alarm Lock Trilogy T2 DL2700 spec sheet ALA129K.
