Philips LFH 9397 Starter Kit 9397 SpeechExec Digital Starter Kit with Pocket Memo® 9370, SpeechExec Software, Foot Control and Headset

Overview:

Always hand in hand

The versatile new Digital Starter Kit 9397 guarantees high digital quality from dictation to transcription. The latest recording technology combines ergonomically designed hardware with ingenious dictation and transcription software, and makes your dictation experience convenient as never before. The powerful Digital Pocket Memo 9370 off ers you virtually unlimited recording capacity with crystal clear sound quality. The SpeechExec Starter Kit Software, together with the new USB foot control and stereo headphones guarantees a smooth transcription process. Set your individual preferences for dictation and transcription to simplify your daily life!

Quick control

• Digital Pocket Memo with push buttons for single handed operation
• Intuitive device control with 'Smart buttons'
• Ergonomic foot control for easy, yet professional use

Easy file handling

• SpeechExec Starter Kit software ensures effi cient handling of dictation fi les
• Automatic fi le download to a PC for quick transcription

Designed around industry standards

• Compatible with industry-standards such as SD card, mini-USB socket, AAA batteries, 3.5 mm headphone and microphone sockets
• Supports the compact .dss fi le format, the industry standard for digital recording

Features:

Digital Pocket Memo 9370:

• Quick recording control through push buttons for single handed operation
• Intuitive operation with smart buttons
• Large backlit LCD screen for an at-a-glance overview
• Virtually unlimited recording capacity thanks to exchangeable SD card
• Automatic file download to your PC via the USB cable or an optional docking station
• Ten dictation folders allow easy organization and storing of dictations
• Supports .dss file format, the industry standard for digital recording
• Docking connector: 8-pin female
• USB: Mini USB 2.0 female (full speed, 12 Mbit/s)
• DC in: 6 V
• Microphone: 3.5 mm, impedance 2 kΩ
• Headphone: 3.5 mm, impedance 8 Ω or more
• Memory card: Secure Digital (SD) and Multimedia card (MMC)
• Display Type: TFT-Transreflective
• Diagonal screen size: 1.71 in. / 44 mm
• Resolution: 128 × 128 pixels
• Backlight color: white
• Recording format: .dss (Digital Speech Standard)
• Memory type: Secure Digital (SD)/Multimedia Card (MMC) up to 2 GB
• Recording modes: Standard Play (SP), Long Play mobile (LPm)
• Recording time (SP/LP): 44 / 65 hours with 256 MB card, 349 / 523 hours with 2 GB card
• Sampling frequency: 12 kHz (SP) / 8 kHz (LPm)
• Compression rate: 13.5 kbit/s (SP) / 9 kbit/s (LPm)
• Frequency response: 200 to 5 500 Hz (SP) / 200 to 3 500 Hz (LPm)
• Battery type: two AAA batteries (LR03 or R03) or two Philips AAA Ni-MH rechargeable batteries (LFH 9154)
• Battery life (Standard Play mode): 17 hours with Philips Ni-MH rechargeable battery, 15 hours with Philips alkaline battery
• Product dimensions (W x D x H): 50 x 116 x 17 mm / 2.0 x 4.6 x 0.7 in.
• Weight: 106 g / 3.7 oz, including two Philips AAA batteries

SpeechExec Starter Kit Software:

• An intuitive user interface makes the handling of sound files and job retrieval fast and simple
• Clear job overview allows more efficient organization and planning of workloads
• Priority indexing allows authors to easily define urgent jobs to be transcribed in the order of preference
• At-a-glance access to job information during transcription provides all relevant dictation data, such as length, author name, keywords and priority status
• Job status information shows if a dictation is pending, in progress or completed
• Automatic file transfer via a network
• PC requirements (SpeechExec):
  • Minimum: Pentium III, 500 MHz and 256 MB RAM
  • Recommended: Pentium IV or similar, 1 GHz and 1 GB RAM
  • Hard disk space: 100 MB for SpeechExec, 250 MB for Microsoft .NET Framework
  • 1 free USB port
  • Operating system: Windows Vista, XP (SP2), 2000 (SP4)

Foot Control 2330:

• Ergonomic design sets new standards in terms of professional usability
• Distinct pedal shape allows blind operation
• Efficient use with minimum physical strain
• Configurable pedals for a tailor-made transcription process
• Connectivity: USB plug
• Product dimensions (W x D x H): 195 x 130 x 35 mm
• Weight: 660 g

Stereo Headphones 334:

• Lightweight design improve comfort for prolonged use
• Under chin style to fit all ears for better comfort
• Improved sound quality through 14 mm / ½ " speaker driver and a neodymium magnet
• Freedom to move thanks to 3 m/10-foot cable
• Connectivity: 3.5 mm headphone plug
• Product dimensions (W x D x H): 160 x 150 x 18 mm / 6.3 x 6.0 x 0.8 in.
• Weight: 0.053 kg / 1.9 oz.

Green specifications:

• Compliant to 2002/95/EC (RoHS)
• Lead-free soldered product

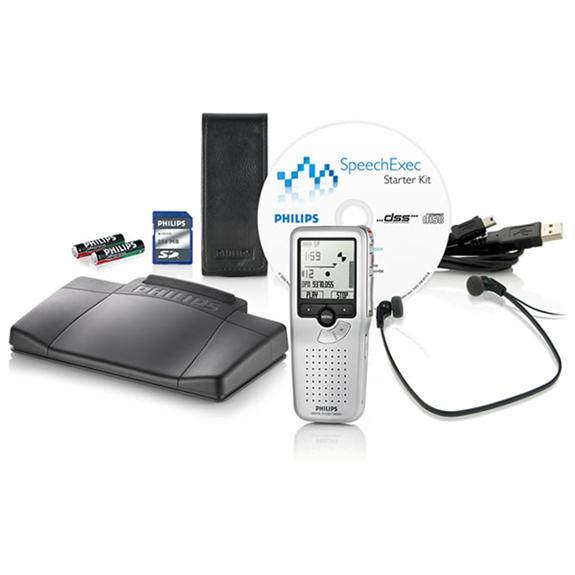

Package contents:

• Digital Pocket Memo 9370
• SpeechExec Starter Kit software
• USB Smart Key
• Foot control 2330
• Stereo headphones 334
• Philips Secure Digital (SD) memory card
• 2 Philips AAA batteries
• USB cable
• Pouch
• User manual
• Quick start guide
