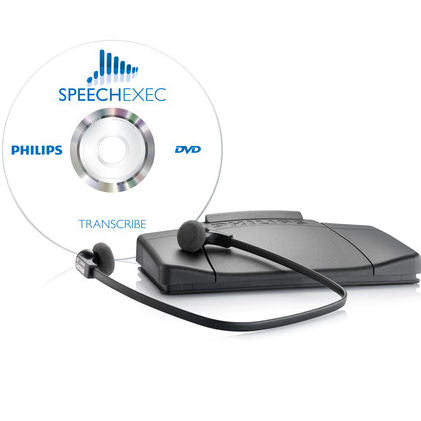

Philips LFH7177 USB SpeechExec Transcription Set 7177

Overview:

Advanced technology doesn’t have to be complicated. The SpeechExec Transcription Set 7177 is a digital transcription system specifically designed to make transcription easy and intuitive. The ergonomic accessories and innovative transcription software let you easily and efficiently manage jobs by displaying all relevant information such as jobs marked as priority and each job’s transcription status. SpeechExec Transcription Set 7177 is the sophisticated solution that simply lets you get on with your job.

Manage your workload:

• Visual job overview allows more efficient organization and planning of workloads
• Visual workflow management facilitates priority documents to be transcribed in order of your preference
• Access to job information during transcription provides all relevant dictation data, such as length, author name, key words and priority status
• Job status indicator shows if a dictation is pending, in progress or completed
• Automatic transfer of dictation files via network

Highlights:

SpeechExec Transcribe:

Visual job overview
The visual workflow management and job overview enables you to organize and plan your workload more efficiently. Thanks to visual workflow management, the transcription of priority documents in your preferred order is managed as straightforward as possible.

Access to job information
Relevant data such as length, author name, key words and priority status are accessible throughout the entire transcription process.

Versatile player
Various features such as graphical position indicator, audio volume meter and audible scan function facilitate the transcription process. Speed control, DSS / WAV / WMA / MP3 playback and automatic backspace provide first-class reproduction of your dictations.

Automatic file transfer and updates
Dictation files are transferred automatically using the network.

Worklist / Workflow
Due to the familiar folder view, which is similar to Windows Explorer, the time needed to get accustomed to SpeechExec can be kept to a minimum. A configurable work list enables the user to sort, hide and show columns, etc., while the Job status indicator shows whether a dictation is pending, in progress or finished.

Digital Speech Standard (.dss)
The .dss file format is the international standard for professional speech processing. Offering outstanding audio quality for recorded voice, .dss files allow a high compression rate, reduce file size, network traffic and required storage capacity. The format also allows additional information, such as client/patient name, and document type to be stored in the file header, further facilitating file organization.

Earphones:

Lightweight design of earphones
The durable, lightweight quality enhances comfort for extended wearing.

Under chin style
Designed for an under-the-chin fit for better comfort.

3 meter / 10-foot cable
The 3 meter / 10-foot cable gives you the freedom to move around your work area without having to remove your Headsets.

Foot Control:

Ergonomically designed
The new Foot Control was developed in close cooperation with hospital ergonomists and professional end users in order to guarantee a smooth transcription process with minimal physical strain.

Configurable to individual needs
The pedal functions of the Foot Control can easily be adapted to one’s personal preferences.

Specifications:

PC requirements (SpeechExec):

• Minimum: Pentium III, 500 MHz and 256 MB RAM
• Recommended: Pentium IV or similar, 1 GHz and 1 GB RAM
• Hard disk space: 100 MB for SpeechExec, 250 MB for Microsoft .NET 1.1 Framework
• Sound card and headphone output or speakers
• 1 free USB port
• Recommended minimum transfer rate for LAN: 100 Mbit/s
• Operating system: Windows Vista, Windows XP (SP2), Windows 2000 (SP 4)

Earphones:

• Sound

  • Acoustic system: Open
  • Magnet type: Neodymium
  • Diaphragm: PET dome
  • Voice coil: Copper
  • Sound quality: Optimized for voice

• reproduction

  • Impedance: 2 × 32 Ohm
  • Maximum power input: 2 × 10 mW
  • Sensitivity: 103 dB
  • Speaker diameter: 14 mm / ½ in.
  • Type: Dynamic

• Connectivity

  • Cable connection: One-sided
  • Cable length: 3 m / 10 ft
  • Connector: 3.5 mm / 1/8 in. stereo, right angled
  • Finishing of connector: Gold-plated
  • Type of cable: Copper

• Dimensions

  • Length: 160 mm / 6.3 in.
  • Width: 150 mm / 6 in.
  • Height: 18 mm / ¾ in.
  • Weight: 0.053 kg / 1.9 oz.

Foot Control:

• Connector: USB plug
• Product dimensions (W x D x H): 195 x 130 x 35 mm / 7.6 x 5.08 x 1.3 in.
• Weight: 660 g / 1 lb. 7 oz.

Green specifications:

• Compliant to 2002/95/EC (RoHS)
• Lead-free soldered product

Package content:

• SpeechExec Transcribe Software
• USB Foot control 2330
• Stereo headphones 334
• User manual
