Nuance 0POWM4N9-E01 PowerMic 4 Speech Recognition Handheld Microphone with 9 Foot Cord

Overview:

High-quality dictation microphone with mouse functions

Boost clinician productivity with Nuance PowerMic 4 ergonomic control
of dictation functions and on-screen field navigation.

Control at your fingertips
Nuance PowerMic 4 brings clinician dictation to a new level by making it quick and easy to control the microphone, navigate and select on-screen fields, and insert, review, and edit generated text. With new features such as a larger pointing device, additional buttons, and magnetic mount support, physicians will enhance their productivity with an improved ergonomic control of dictation and speech recognition functions.

With Nuance PowerMic 4, clinicians can rapidly navigate EHR, template, or report fields and insert text using dictation for new levels of usability and efficiency.

Features:

• USB plug-and-play installation ensures compatibility with a wide range of computers
• Unidirectional noise cancellation microphone ensures performance accuracy in even the noisiest environments
• High pass filter provides clearer audio
• Improved microphone and speaker for higher quality sound input and output - Higher quality audio means better recognition
• Perfect companion to PowerMic Mobile, which turns smartphones into secure wireless microphones
• Support individual clinician preferences and workflows by offering a mix of PowerMic III and PowerMic Mobile
• High Pass Filter - Eliminates electrical interference and provides higher quality audio

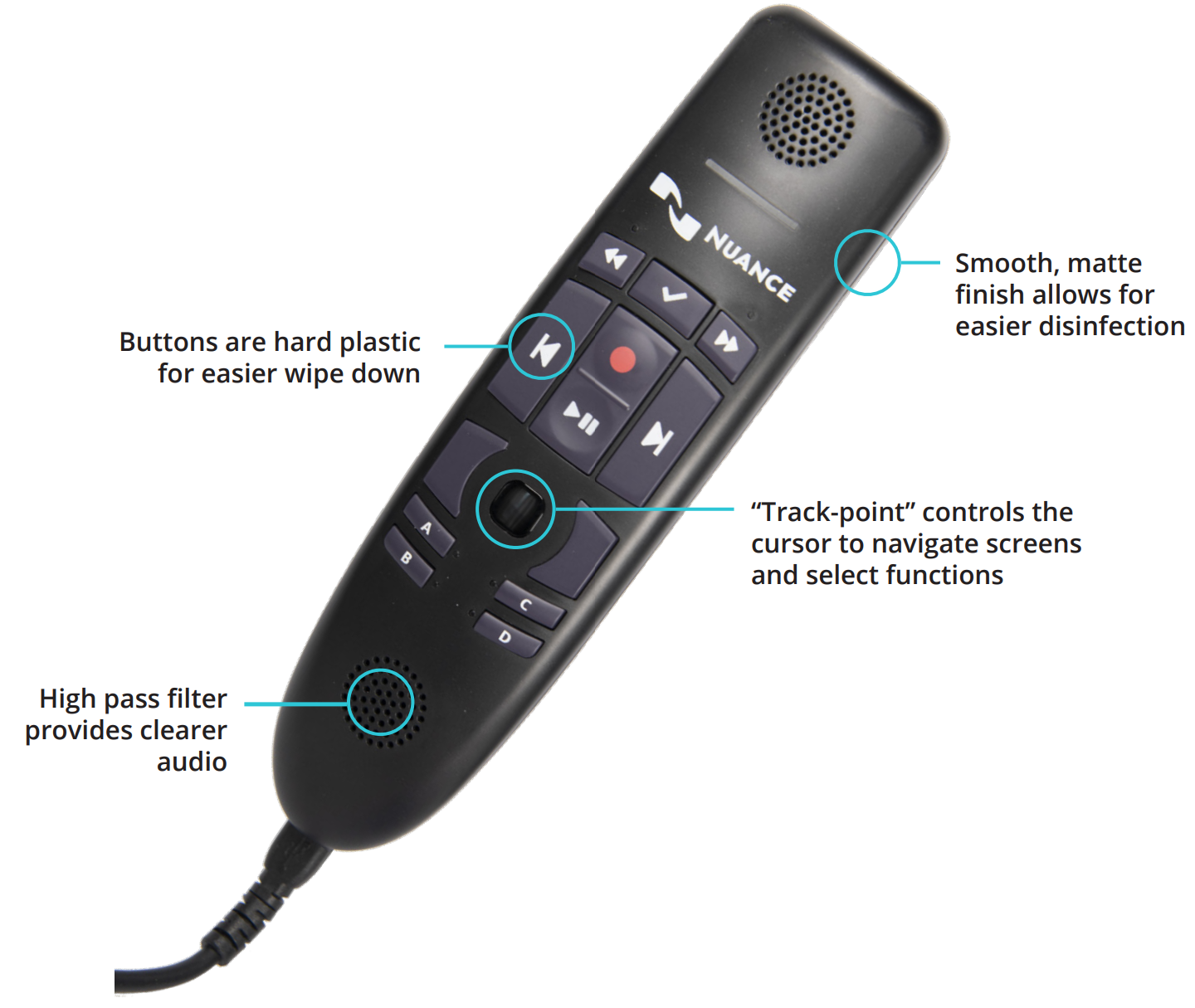

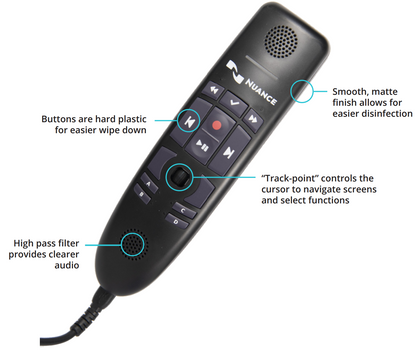

• Hard plastic buttons and smooth matte finish casing allows for easier wipe down for cleaning and sanitizing
• Easy-to-clean antimicrobial surface promotes safety in clinical settings
• 30% larger pointing device - Easier to use as a mouse

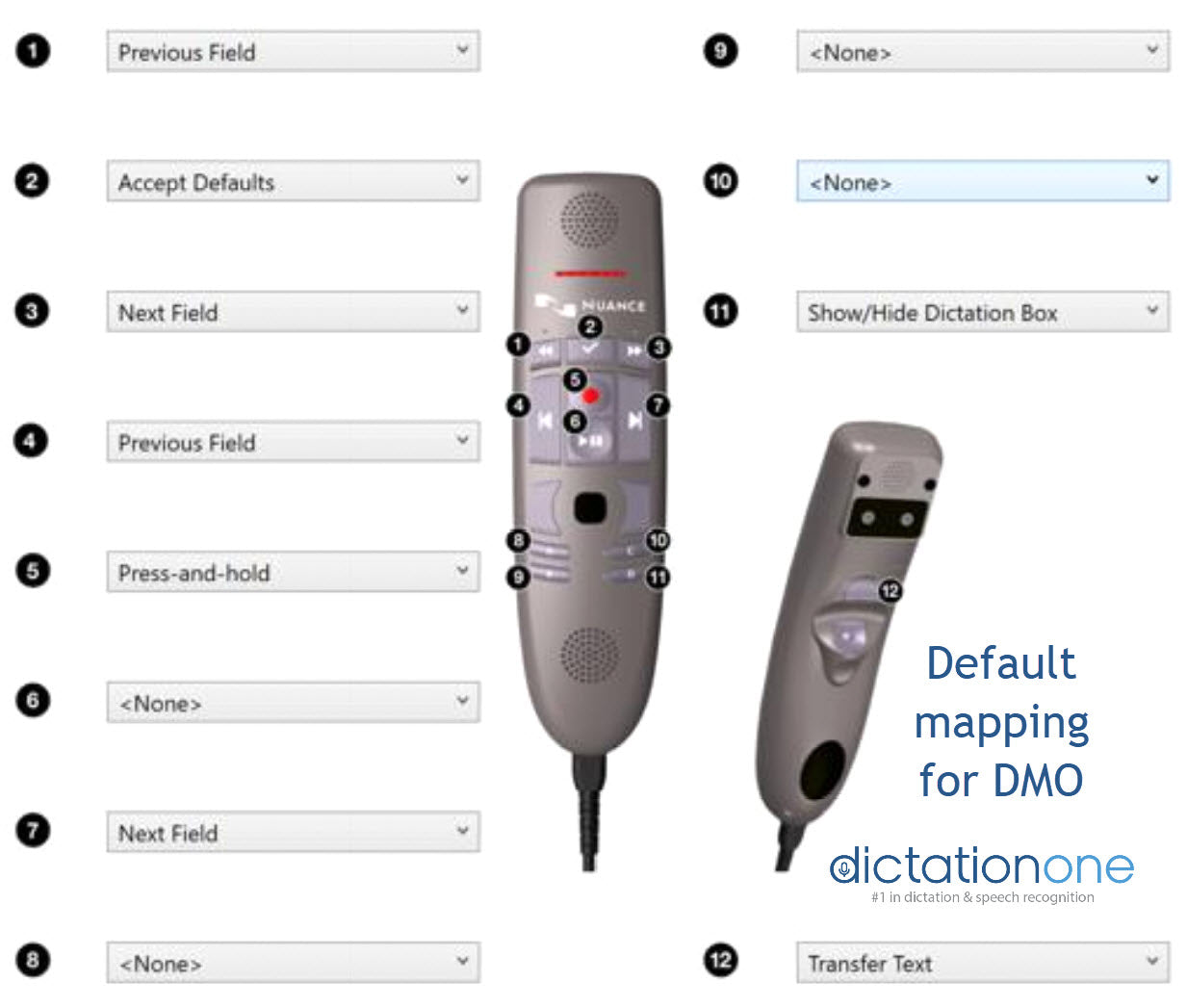

• Two additional programmable buttons - More customization capabilities

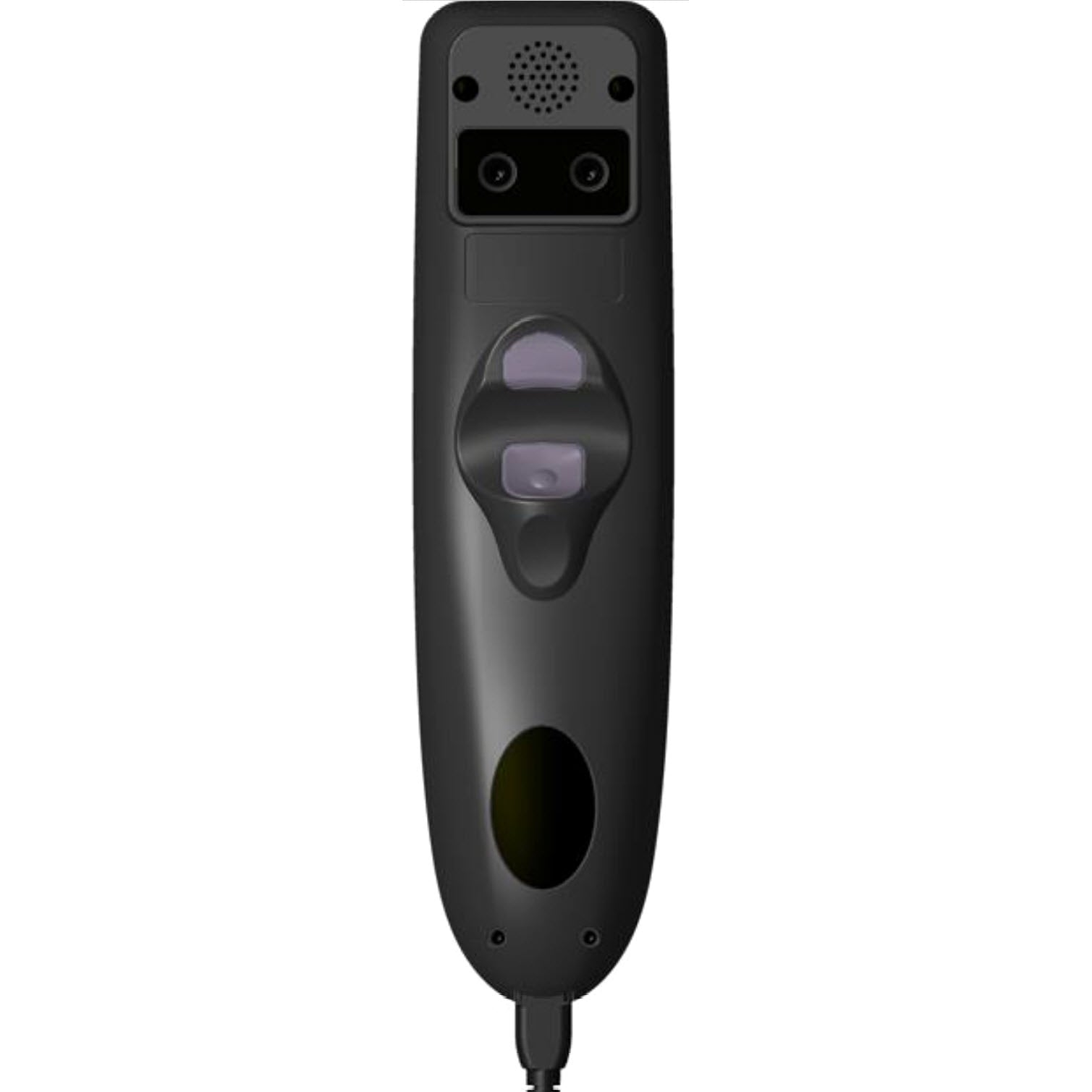

• Metal plate on back - Supports a variety of magnetic mounting solutions
• Ergonomic design - Easier to hold for long periods
• 9-foot USB cable
• Available version: — 3-foot USB cable (0POWM4N3-E01), — 6-foot coiled USB cable (0POWM4C-E01)

Compatibility:

• Dragon Medical One 2021.4 SR1 or later (except Coherence Mode)
• Dragon Professional Anywhere 2021.4 or later
• Dragon Legal Anywhere 2021.4 or later
• Dragon Professional Anywhere for Law Enforcement 2021.4 or later
• SpeechKit SDK 2021.4, a.k.a Dragon Medical Embedded (for integrators
• PowerScribe One
• PowerScribe® 360 Reporting
• PowerShare
• Dragon Professional 16
• Dragon Professional 16 for Law Enforcement
• Dragon Legal 16

No support for the following:

• Dragon Medical Network Edition (DMNE)
• Dragon Medical Practice Edition (DMPE)
• PowerScribe 360
• Dragon Medical Workflow Manager
• SpeechMagic SD

Package Content:

• PowerMIc 4 with 9 Foot Cord

Technical specifications:

Supported Operating System:

• Windows® 10, Windows 11

USB:

• USB 2.0, type A (compatible with USB 3.0)

Supported Environments:

• Citrix® and VMware For more information, please contact Nuance Technical Support.

Frequency Response Input/Output:

• Microphone 20 - 12,000 Hz
• Speaker 300 - 7,500 Hz
• Signal-to-Noise Ratio: >70dbA

Power Consumption:

• Current: < 100mA (max playback volume)
• Power: max 0.5 VA (max playback volume)

Operation Conditions:

• Operating Temperature 5° to 45° C (41°F to 113°)
• Humidity: 10% - 90%

Emissions – Class B:

• – EN 55032:2015 – Electromagnetic Compatibility of multimedia equipment—Emissions requirements

Immunity:

• – EN 55035:2018 – Electromagnetic Compatibility of multimedia equipment—Immunity requirements

FCC warning to user:

• – This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
• (1) This device may not cause harmful interference, and
• (2) this device must accept any interference received, including interference that may cause undesired operation.

Compliance:

• Manufacturers declaration of conformity
• The devices complies with the following EU Directives
  – 93/68/EEC—CE marking directive
  – 2014/30/EU—Electromagnetic Compatibility,
  – 2011/65/EU & 2015/863/EU—RoHS
• Date of first affixing the CE mark 2021

Designed for:

• Dragon Medical One
• Dragon Legal Anywhere
• Dragon Professional Anywhere
• Dragon Professional Anywhere for Law Enforcement
• Dragon 16
• Dragon 16 Group

SYSTEM REQUIREMENTS:

Operating System:
Windows® 7, Windows 8.1, Windows 10

Connection:
USB 1.1 or higher (USB port must be able to deliver min 500mA for power consumption)

Supported Environments:
Citrix® and VMware are supported. For more information, please contact Nuance Technical Support.

Frequency Response Input/Output:
Microphone 20 - 16,000 Hz
Speaker 500 - 5,000 Hz

Signal-to-Noise Ratio: +70db

Power Consumption:
Current: max 500mA (max playback volume)
Power: max 2.5 VA (max playback volume)
Typical current consumption:
– Standby: 115mA
– Recording (with LED on): 130mA
– Playback at max volume: 400mA
Operating Temperature 5° to 35° C (41°F to 95°)
Storage Temperature -25 to +70° C (-13°F – 158°F)

Safety:
– IEC/EN/UL 60950-1: 2005 2nd edition): AM1:2009 Safety of Information Technology Equipment (ITE)
– Voltage and power draw: 5 Vdc, 500 mA max

Emmissions – Class B:
– EN 55032:2012 – Electromagnetic Compatibility of multimedia equipment Emissions requirements
– AS/NZS CISPR 32:2013 Electromagnetic Compatibility of multimedia equipment Emissions requirements
– FCC Title 47 of the Code of Federal Regulations (CFR47) – Telecommunications part 15.107:2015 Radio Frequency Devices
– ICE-003:2012 Information Technology Equipment (ITE) – Limits and methods of Measurement

Immunity
– EN 55024:2010 Information Technology Equipment – Immunity characteristics – Limits and methods of Measurement

FCC warning to user
– This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) this device must accept any interference received, including interference that may cause undesired operation.
